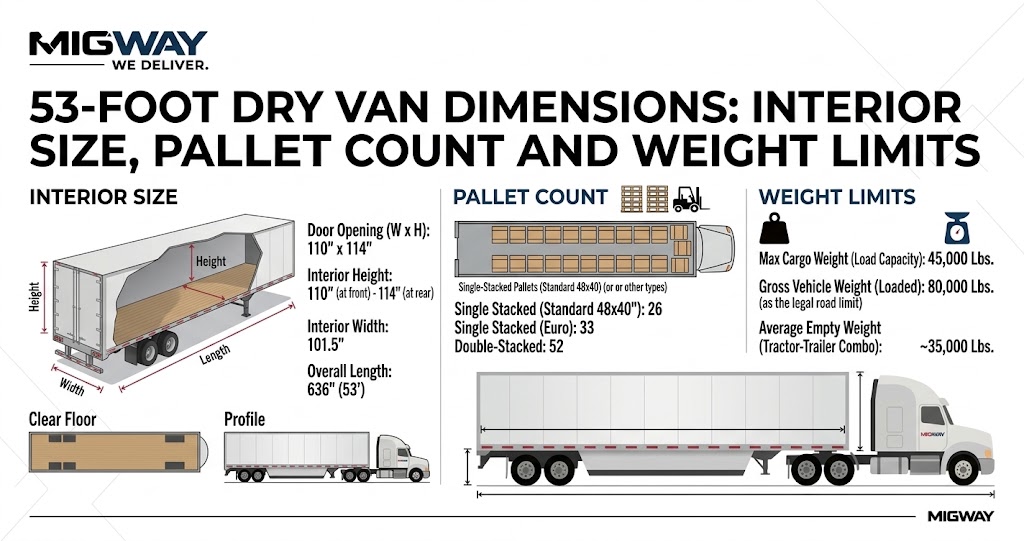

53-Foot Dry Van Dimensions: Interior Size, Pallet Count and Weight Limits
A standard 53-foot dry van measures about 52 feet 6 inches long, 99 inches wide and 9 feet tall inside. It holds 26 standard pallets loaded straight, or 30 turned, and carries roughly 42,000 to 45,000 pounds of freight. Those three numbers answer most load planning questions, but the details decide whether your freight fits on one truck or two.
This guide covers 53-foot dry van dimensions inside and out, pallet counts for common pallet sizes, legal weight limits, and the loading mistakes that cost shippers money. It is written by MigWay, an asset-based truckload carrier in Pineville, North Carolina, running 400 trucks and 750 trailers across 48 states.
What are the dimensions of a 53-foot dry van?
A 53-foot dry van is 53 feet long and 102 inches wide on the outside. Inside, walls, doors and the nose take up a few inches, so usable space is a little smaller. Exact numbers vary by manufacturer and model year, so use these as planning ranges.
| Measurement | Typical range | Planning number |
|---|---|---|
| Exterior length | 53 ft | 53 ft |
| Exterior width | 102 in (8 ft 6 in) | 102 in |
| Exterior height (with tractor) | 13 ft 6 in | 13 ft 6 in |
| Interior length | 52 ft 5 in to 52 ft 8 in | 52 ft 6 in (630 in) |
| Interior width | 98 to 101 in | 99 in |
| Interior height | 108 to 110 in | 108 in (9 ft) |
| Door opening width (swing doors) | about 98 in | 98 in |
| Door opening height (swing doors) | 108 to 110 in | 108 in |
| Empty trailer weight | about 14,000 to 15,000 lbs | 15,000 lbs |
Swing doors vs. roll-up doors
Most 53-foot dry vans in truckload service have swing doors. Roll-up doors are common on vans used for city deliveries. A roll-up door's housing hangs down from the ceiling at the rear, cutting door height by several inches. If your freight is tall, confirm the door type before you tender.
Height limits on the road
There is no single federal height limit. States set their own, and 13 feet 6 inches is the standard across most of the East, including the Carolinas, Virginia and the Northeast. Some western states allow 14 feet. The trailer's height is fixed, so this matters for oversize equipment, not dry vans.
How many cubic feet are in a 53-foot dry van?
A 53-foot dry van holds about 3,800 to 3,900 cubic feet of usable space. Here is the math with the planning numbers above.
- Length: 52.5 ft
- Width: 99 in = 8.25 ft
- Height: 9 ft
- 52.5 x 8.25 x 9 = about 3,898 cubic feet
You will see figures anywhere from 3,400 to 4,000 cubic feet online. The spread comes from different interior widths and heights, and from whether the source counts space you can load in practice. Pallets, bracing and air gaps mean you rarely fill every cubic foot.
How many pallets fit in a 53-foot dry van?
A 53-foot dry van fits 26 standard 48x40 pallets loaded straight, two across and 13 deep, on the floor. Turned sideways, the same pallets fit 30. Double-stacking doubles those numbers if the freight can bear the weight.
| Pallet size (inches) | Loading pattern | Single stack | Double stack |
|---|---|---|---|
| 48 x 40 (GMA standard) | Straight (48 in side along trailer length) | 26 | 52 |
| 48 x 40 (GMA standard) | Turned (40 in side along trailer length) | 30 | 60 |
| 48 x 40 (GMA standard) | Pinwheel (mixed straight and turned) | 28 | 56 |
| 48 x 48 | Straight | 26 | 52 |
| 42 x 42 | Straight | 30 | 60 |
| 40 x 40 | Straight | 30 | 60 |
These counts assume pallets with no overhang and a trailer at least 98 inches wide inside. Turned 48x40 pallets sit 96 inches across, which leaves little room in a narrow trailer. Freight hanging over the pallet edge can drop your count by a full row.
Before you double-stack, check three things: the bottom layer can carry the top layer without crushing, the combined height clears the door opening, and the total weight stays legal.
How much weight can a 53-foot dry van carry?
Most 53-foot dry vans can legally carry about 42,000 to 45,000 pounds of freight. The limit comes from the federal 80,000-pound gross vehicle weight cap, minus the weight of the truck and trailer.
| Component | Typical weight |
|---|---|
| Federal gross weight limit (Interstate) | 80,000 lbs |
| Sleeper tractor with fuel and driver | about 18,000 to 20,000 lbs |
| Empty 53-foot dry van | about 14,000 to 15,000 lbs |
| Remaining legal payload | about 42,000 to 45,000 lbs |
Axle limits matter as much as total weight
Hitting 80,000 pounds is not enough. Weight also has to be spread legally across the axles. Federal limits allow 20,000 pounds on a single axle and 34,000 pounds on a tandem axle group. On a typical five-axle truck, that works out to roughly:
- Steer axle: about 12,000 lbs in practice
- Drive tandem: up to 34,000 lbs
- Trailer tandem: up to 34,000 lbs
The Federal Bridge Formula can lower these limits based on the spacing between axles. Drivers adjust weight by sliding the trailer tandems, which moves roughly 250 pounds per hole. But sliding only goes so far. Most states cap the kingpin-to-rear-axle distance at about 41 feet, and California caps it at 40 feet.
That is why load placement matters. Loading all the heavy freight in the nose or tail can overload one axle group even when the total is legal. Spread heavy pallets evenly along the floor.
Will your freight weigh out or cube out in a 53-foot dry van?
Every load hits one limit first: weight or space. Dense freight "weighs out" before the trailer is full. Light, bulky freight "cubes out" before it gets heavy.
A quick test: divide 45,000 pounds by your pallet count. With 26 pallets, the break point is about 1,730 pounds per pallet. Heavier than that, you will weigh out. Lighter, you will run out of floor space first.
| Freight type | Usually | Example |
|---|---|---|
| Beverages, canned goods, paper | Weighs out | Floor is half empty at 44,000 lbs |
| Building materials in bags or boxes | Weighs out | Heavy pallets spaced out on the floor |
| Furniture, insulation, packaging | Cubes out | Trailer is full at 15,000 to 20,000 lbs |
| Retail and e-commerce mixed goods | Depends | Often cubes out with double-stacking limits |
Knowing which limit you hit helps you plan. Heavy shippers can sometimes save by combining orders to fill weight. Light shippers can save by improving pallet build and stacking to fill cube.
What loading mistakes cost shippers money on 53-foot dry vans?
Most extra charges and damaged freight on dry van loads trace back to a few common mistakes.
- Pallet overhang. Boxes hanging past the pallet edge break the two-across pattern and cost you a row.
- Heavy freight in one spot. Overloaded axles mean a trip back to the dock to reload or a fine at the scale.
- No load securement. Partial loads need load bars, straps or airbags to stop shifting.
- Wrong weight on the bill of lading. Underreported weight leads to overweight tickets and rework.
- Tall freight near the door. Freight that clears inside the trailer may not clear the door opening.
- Weak bottom layers. Double-stacked freight with soft bottom cartons arrives crushed.
If you ship heavy loads regularly, ask your dock team to check a certified scale ticket on the first few loads. It is cheaper than one overweight fine.
How does a 53-foot dry van compare to other trailers?
The 53-foot dry van is the workhorse of full truckload freight. Here is how it compares to other common options.
| Trailer | Interior length | 48x40 pallets (single, straight) | Best for |
|---|---|---|---|
| 53-foot dry van | about 52 ft 6 in | 26 | Most full truckload freight |
| 48-foot dry van | about 47 ft 6 in | 24 | Some regional and dedicated fleets |
| 26-foot box truck | about 26 ft | 12 | Local and last-mile deliveries |
| 48 or 53-foot flatbed | 48 or 53 ft deck | Not typical for palletized freight | Steel, lumber, machinery and oversized loads |
If your freight is too tall or wide for a van door, or needs side or crane loading, it belongs on a flatbed. Our guide to dry van vs. flatbed transportation covers the decision. If you have fewer than 10 to 12 pallets, compare options in LTL vs. FTL freight shipping.
How does MigWay handle 53-foot dry van freight?
MigWay runs full truckload dry van service across all 48 states from our base in Pineville, just south of Charlotte. Every load moves on our own equipment with zero outsourcing.
- Asset fleet: 400 trucks and 750 trailers.
- Modern tractors: 2023-2027 Freightliner, Volvo and Mack automatics, governed at 70 mph.
- Drop trailer capable: load on your schedule with trailers staged at your dock.
- Lead time: 12-24 hours standard, with expedited service in as little as 4 hours.
- 24/7 in-house dispatch and ELD and GPS tracking on every load.
- Flat, all-in pricing: one rate with fuel and standard charges included.
Not sure if your freight fits one trailer? Send us your pallet count, pallet size and total weight, and we will tell you. Request a freight quote or start a chat with our team, or call +1-980-255-3200.
What are the key 53-foot dry van dimensions to remember?
For load planning, remember 53-foot dry van dimensions of about 52 feet 6 inches long, 99 inches wide and 9 feet tall inside, with a 98-inch door. Plan on 26 standard pallets straight or 30 turned, about 3,900 cubic feet, and 42,000 to 45,000 pounds of legal payload. Confirm exact specs with your carrier when your freight is close to any limit.
Frequently Asked Questions
What are the inside dimensions of a 53-foot trailer?
A 53-foot dry van is about 52 feet 6 inches long, 98 to 101 inches wide and 108 to 110 inches tall inside. Exact numbers vary by manufacturer. Door openings are about 98 inches wide and 108 to 110 inches tall on swing-door trailers.
How many pallets fit in a 53-foot trailer?
A 53-foot dry van fits 26 standard 48x40 pallets loaded straight and 30 loaded turned, on a single layer. Double-stacked, that becomes 52 or 60 pallets if the freight can handle the weight and height.
How much weight can a 53-foot dry van hold?
Most 53-foot dry vans can legally carry about 42,000 to 45,000 pounds of freight. The limit is the federal 80,000-pound gross weight cap minus the weight of the tractor and trailer.
How many cubic feet is a 53-foot trailer?
About 3,800 to 3,900 cubic feet of usable space. Using 52.5 feet long, 8.25 feet wide and 9 feet tall inside gives about 3,898 cubic feet.
How wide is a 53-foot trailer door?
Swing doors on a 53-foot dry van open about 98 inches wide and 108 to 110 inches tall. Roll-up doors are shorter because the door housing hangs from the ceiling at the rear.
How tall is a 53-foot dry van?
A loaded tractor and 53-foot dry van stand about 13 feet 6 inches tall, the standard legal height in most eastern states. Interior height is about 9 feet.
How much does an empty 53-foot trailer weigh?
An empty 53-foot dry van trailer weighs about 14,000 to 15,000 pounds. A sleeper tractor adds about 18,000 to 20,000 pounds with fuel and driver.
What are the axle weight limits for a semi truck?
Federal rules allow 20,000 pounds on a single axle, 34,000 pounds on a tandem group, and 80,000 pounds gross. On a typical tractor-trailer, that means about 12,000 on the steer axle and up to 34,000 each on the drive and trailer tandems.
What does it mean when freight weighs out?
Freight weighs out when it reaches the legal weight limit before filling the trailer. Heavy goods like beverages and paper usually weigh out. Light, bulky goods cube out, filling the space before reaching the weight limit.
Is a 53-foot dry van the same as a 53-foot trailer?
Usually, yes. In freight, "53-foot trailer" most often means a 53-foot dry van. Flatbeds, reefers and step decks also come in 53-foot lengths, but their dimensions and capacities differ.
